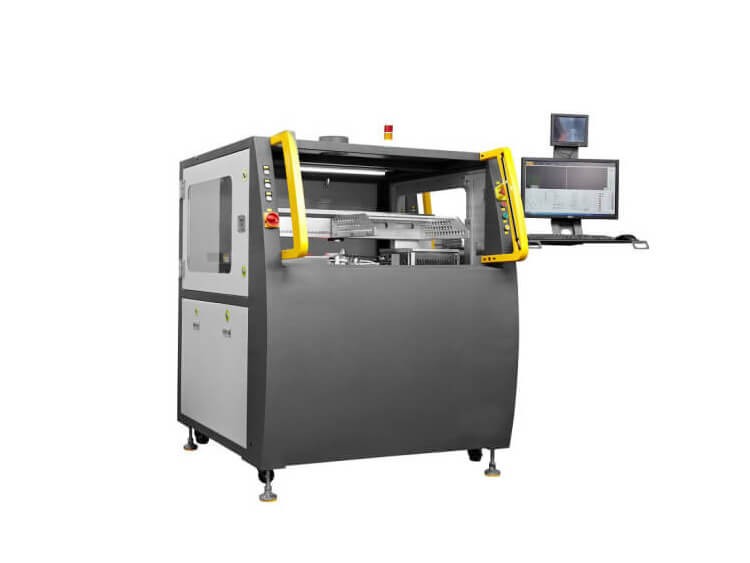

Offline Selective Soldering Machine SL330

max solder temperature 350℃
solder pot capacity 15 KG
dimension L1280mm X W1400mm X H1650mm
Net weight 380KG

Offline Selective Soldering Machine SL330

Specifications:

Offline Selective Soldering Machine SL330

Offline Selective wave soldering machine is on economic solutions for the selective soldering process, Cheap price:30000USD and you can got an idea machine dealing with the small quantity selective soldering PCB. The producing speed around 1minites/PCB.

selective wave soldering machine with automatic system and easy wave soldering process for led outdoor display

we not only have the standard wave soldering machine, but also have the selective wave solder machine which include online and offline!

Introduce:

1.More and more competition in the electronics market, to the electronic product manufacturing enterprises bring huge quality and cost pressures.Electronic products production process of high density, miniaturization trend driving the rapid development of SMT technology, the traditional wave soldering process have been unable to meet the needs of the few remaining perforation components of welding, and manual mode is difficult to for large heat capacity or fine pitch components to realize high quality, high efficiency welding, the machinery, equipment and labor cost advantage is gradually lost.Mini selective wave soldering technology to the development of electronic product manufacturing engineers provide a new choice, at the same time, choose welding low running cost and high applicability to quickly get the welcome of electronic products manufacturers.

2.Selective wave soldering system is a kind of controlled by the program, the installation will help flux nozzle and tin furnace of multi-axis control platform.PCB online via rail transportation after positioning, will first spray flux accurately on the PCB for welding on site, and then through a small nozzle (usually 2 ~ 4 mm) in diameter and solder pump to create an accurate circular mini solder wave, after multi-axis control platform, from the bottom of the PCB welding.Due to welding components usually surrounded by SMT components, and high density, small spacing, in order to avoid damage to the bottom of the adjacent components and welding plate, selecting welding process must be very precise.

3.Selective wave soldering system of process control, no matter from movement, process speed, or unlimited direction control (X, Y, Z), temperature and heat control, its function is very powerful.Selective wave soldering during welding, welding parameters of each solder joint can be "tailored", enough process adjustment space to each spot welding conditions (such as: flux spraying quantity, welding time, welding height, wave height) transferred to the best, the defect rate reduce.All the control parameters settings can be saved to the program, at any time during production, can bring up the related data from the program.Therefore, if the system is properly maintained, a few years later, the quality of welding is still the same.

Machine name

SL330

General Function:

dimension

L1280mm X W1400mm X H1650mm

general power

5kw

consumption power

1--3kw

power supply

1 PH 220V 50HZ

net weight

380KG

reuiqred air source

3-5 Bars

required air flow

8-12L/min

required N2 pressure

3-4 Bars

required N2 flow

≥2m³/Hour

required N2 purity

≥99.998%

required exhausting

500--800CMB/H

carrier or PCB

carrier

Customized

max carrier size

L450 X W300MM

max solder area

L400 X W300MM

PCB thickness

0.2mm-----6mm

pcb edge

3mm above

controlling & conveyor

Controlling System

Industrial PC

PCB Loading board method

Manual

PCB Unloading board method

Manual

Operating height

900+/-30mm

PCB conveyor up clearance

50MM

PCB conveyor bottom clearance

30MM

Motion table


motion axis

X, Y, Z

motion control

Servo control

position accuracy

+ / - 0.1 mm

chassis

Steel Constructure

Flux management

flux nozzle

jet valve

flux tank capacity

1L

flux tank

Pressure Tank

Preheat

preheating method

Bottom Infrared preheating

heater’s power

3kw

temperature range

25--240c degree

solder pot

standard pot number

1

solder pot capacity

15 kgs /oven

solder temperature range

PID

melting time

20--30 Minutes

max solder temperature

350℃

solder heater

1.2kw

solder nozzle

nozzle dim

Customized

Nozzle material

Steel alloy

standard equipped nozzle

5pcs/oveninner 4mm x 3pcs,5mm,6mm )

N2 management

N2 heater

Standard

N2 temp range

0 - 350 C

N2 consumption

1---2m³/hour/nozzle

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
