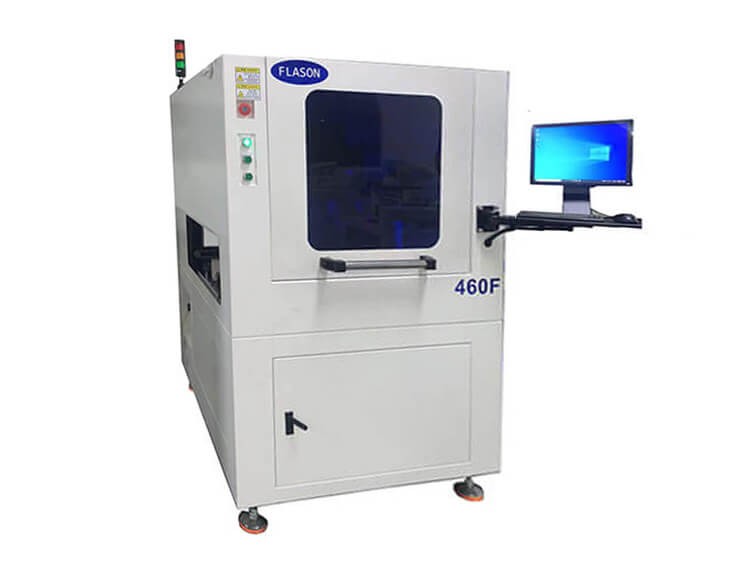

SMT Selective Coating Machine 460F

4 axis moving
Max PCB:450*450mm
Position Accuracy ±0.02mm
Size 1060x1200mmx1700mm

SMT Selective Coating Machine 460F


SMT Selective Coating Machine 460F

1. The equipment adopts industrial computer control, windowssa7 operating system;

2. Driven by servo motor + ball screw, with automatic precision calibration function, which can automatically eliminate


3. X, Y, Z, U four-axis movement, the valve body automatically tilts 35° and 360° and rotates arbitrarily, which can achieve

spraying without dead spots;

4. The equipment track automatic pressing function, the spraying accuracy is higher, the repeat accuracy is improved, the

glue is isolated from contact with the transportation chain, and the maintenance cycle is reduced;

5.  It can carry two or  more sets of valve  bodies at the same time to increase the  production capacity and  realize the

splicing spraying;

6.  Equipped with  coating valve  automatic soaking  and  automatic spitting  device, which  can avoid the clogging  of the

valve nozzle, and the maintenance is convenient and quick;

7. Online track design, which can be connected with other equipment online;

8. Support offline programming and manual teaching programming methods;

9. Configure exhaust gas discharge port

11. Equipped with SMEMA interface to communicate with other devices

12. Optional glue level alarm system

13. Optional CCD visual positioning system

Frame size




Control mode

Industrial computer + motion control card

Method of programming

Manual teaching

Run the software

Chengyuan Coating Machine Intelligent Selective Control Software

PCB Transmission height


Transportation speed

Max 300mm/s

Transmission direction

L→R ( R→L)

transfer method

Stainless steel chain + stepper motor

PCB Width range


Width adjustment method

Stepping motor automatically adjusts the width

X 、Y Shaft drive mode

Servo motor + high-precision screw module

X 、Y Maximum operating speed of shaft


X.Y Axis positioning accuracy

0.01 mm

Z Maximum operating speed of shaft


Z Shaft drive mode

Servo motor + high precision module

Z Axis positioning accuracy

0.01 mm

U Shaft drive mode

Servo motor + synchronous wheel/synchronous belt

U Axis rotation angle

± 180°

Inclination angle of the valve


Valve up and down

Slide cylinder

Number of valves

3 pcs

Valve type

Cone valve / sector valve / dispensing valve each

PCB Board size

MAX W50mm*L460mm

PCB Board component height

MAX 100mm

Coating width


Spray thickness

0.01 mm --5mm ( Determined according to glue performance)

Tank volume

10L Glue supply pressure tank (optional)

Cleaning function

The equipment comes with cleaning function

Lighting part

The equipment comes with white light and purple light

power supply


Gas source


Total power


Automatic cleaning device


Barcode scanning function


CCD Visual positioning
