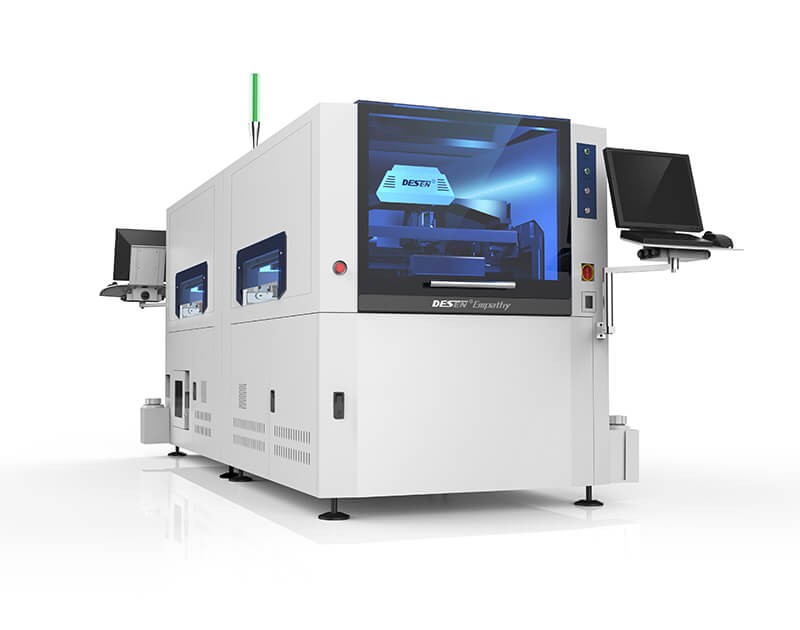

Dual Lane SMT Stencil Printer Empathy

Max PCB:300*340mm
PCB weight ≤3kg
size:1400(L)X1540(W)X1500(H)mm
Weight:1400Kg

Dual Lane SMT Stencil Printer Empathy

Specifications:

Dual Lane SMT Stencil Printer Empathy

The whole machine is fully controlled by servo system;

Unique scraper self-adaptive system;

Multi-functional image processing system;

High precision UVW closed loop platform;

Three-section PCB intelligent transmission system;

Automatic steel mesh positioning module;

Unique intelligent steel mesh cleaning system;

User-friendly operation interface;

Back-to-back free combination of double unit

Specification :

High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size:50mm x 50mm ~300mm x 340mm;

PCB thickness: 0.4mm ~ 6mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,

min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,

medical power equipment, aerospace and aviation, besides general electronics products.

Precision

Printing precision

≥2 Cpk@±10μm@,6σ

Repeat printing

≥2 Cpk@±5μm@,6σ

Cyclingtime

6.5s

Screen frame

screen frame dimension

737mm x 737mm

Screen frame fixation

air cylinder

Screen frame fixation

air cylinder

Platform

platform adjustment range

X:±4mm Y:±6mm

Platform adjustment angle

Z:±2°

PCB

PCB printing size

Min50*50mm Max300*340mm

PCB thickness

0.4mm-6mm

PCB weight

≤3kg

PCB warping

≤1%

Transmission

transmission direction

L→R,R→LL→LR→R

Transmission speed

100-1500mm/s programmable adjustment

Transmission width

50-340mm

Demould

Demould method

First use scraper, then demould, demould then use scraper

Demould speed

0.1-20mm/s

Speed distance

0mm-3mm

Workcondition

voltage

220V±10%single phase 50/60Hz

Power

4kw

Air pressure

0.45-0.6kg/cm²

Gas consumption

0.5ml/s

Safety performance

insulation resistance

1KV/3MΩ

Ground resistance

≤0.1Ω

Operation noise

≤87dB

External dimension

1400(L)X1540(W)X1500(H)mm
