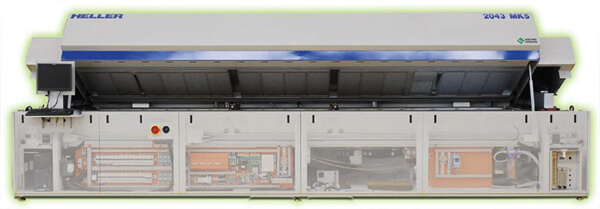

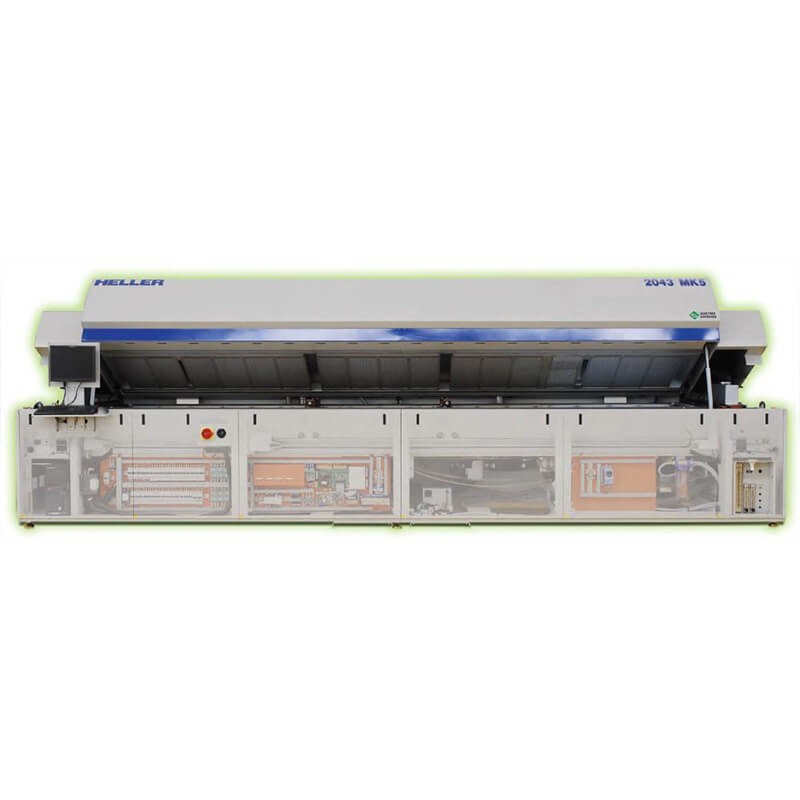

Heller 1936/2043 MARK 5 SMT REFLOW OVEN

Power Input (3 Phase) Standard:480 volts
Breaker Size:100 amps @ 480v
kW 9 - 15 Continuous
Typical Run Current 30 - 35 amps @ 480v
Optional Power Inputs Available 208/240/380/400/415 VAC
Frequency 50/60 Hz

Heller 1936/2043 MARK 5 SMT REFLOW OVEN

Specifications:


Heller 1936/2043 MARK 5 SMT REFLOW OVEN

The ultimate high volume production solutions with belt speeds up to 1.4 m/min to accommodate the fastest pick and place systems.

Lead Free Certified!

Maintenance Free!

Lowest Nitrogen & Electrical Usage!

Integrated Cpk software at No Charge!

The 1936 and 2043 MK5 systems deliver the highest levels of repeatability with the lowest delta Ts. The latest breakthroughs associated with the Mark 5 reflow system now provide you with an even lower cost-of-ownership. Heller's new heating and cooling advances deliver up to 40% reduction in nitrogen and electrical consumption. This makes the MK 5 system not only the premier reflow soldering system but the best overall value in the industry!

INNOVATION FOR YOUR BENEFIT

Advancements like the invention of the first waterless / filterless flux separation system earned Heller the prestigious Frost & Sullivan Award for Innovation in reflow soldering. But more importantly, this development extended preventative maintenance intervals from weeks to months for our systems. Additional breakthroughs in energy management have helped Heller's customers remain environmentally responsible while still maintaining their sustainability guidelines.


1936 MK5 (Air)

1936 MK5 (Nitrogen)

Power Input (3 Phase) Standard

480 volts

480 volts

Breaker Size

100 amps @ 480v

100 amps @ 480v

kW

9 - 15 Continuous

9 - 15 Continuous

Typical Run Current

30 - 35 amps @ 480v

30 - 35 amps @ 480v

Optional Power Inputs Available

208/240/380/400/415 VAC

208/240/380/400/415 VAC

Frequency

50/60 Hz

50/60 Hz

Sequential Zone Turn On

S

S

Overall Oven Dimensions

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

Typical Net Weight

6380 lbs. (2900 kg)

7180 lbs. (3280 kg)

Typical Shipping Weight

7875 lbs. (3580 kg)

8980 lbs. (4080 kg)

Typical Shipping Dimension

244” x 73” x 83”

620 x 185 x 210 cm

Overall Oven Dimensions

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

Height From Floor

35.5" + 2.0"  (90 cm + 5 cm)

35.5" + 2.0"  (90 cm + 5 cm)

Maximum PCB Width

22" (55 cm)

22"  (56 cm)

Space Required Between PCB's

0.0" (0.0 cm)

0.0" (0.0 cm)

Conveyor Length On-Load

18" (46 cm) *

3" (7.5 cm)  *

Conveyor Length Off-Load

18" (46 cm) *

3" (7.5 cm)  *

Heated Tunnel Length

135"  (343 cm)

135"  (343 cm)

Process Clearance Above Mesh Belt

2.3" (5.8 cm)

2.3" (5.8 cm)
