In-line SMT PCBA Cleaning Machine SME-6100

Conveyor net width 600mm
Conveyor net speed 100~1500mm/min
PCB width 60~600mm
Clean tank 300L

In-line SMT PCBA Cleaning Machine SME-6100


In-line SMT PCBA Cleaning Machine SME-6100

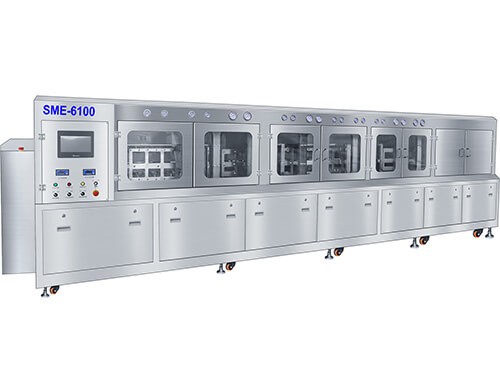

SME-6100 is a high-end in line PCBA DI water cleaning machine. Only use Diwater to clean water-sular solder paste flux and non-clean solder paste flux on SMT or THT PCBA after welding.It is mainly use on aviation, aerospace, medical, new energy, automotive electronics, digital meters

industries. Machine Features:

1.Big quantity PCBA in line DI water cleaning system.

2.Super cleaning result. Thoroughly clean water-sular solder paste flux and non-clean solder paste flux on SMT or THT PCBA after welding.

3.Multi-areas DI water cleaning process, Pre-clean, clean, final spray clean, air knives shear, hot air dry are completely according to settings.

4.Fresh DI water supply automatically, post-area DI water overflow to the previous-area.

5.Up/down DI water spray pressure can be adjusted, water pressure shown on meters.

6.DI water spray pressure can reach to 80 PSI, it can permeate to PCBA bottom gap and make thoroughly clean.

7.Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.

8.PCB flat net conveyor system, stable and no deviation.

9.PC control system, Chinese/English operation interface, program and parameters setting, load, save and change are very convenient.

10.Total SUS304 structure, Acid and Alkali corrosion resistance.


SME-6100 Spec

Conveyor net width


Conveyor net speed

100~1500mm/min, suggest 300~400mm/min

Conveyor height


PCB conveyor direction

From Left to Right

PCB width


PCB clean height


Clean tank


Rinse tank


DI water consumption


Exhausted air




Power/air supply


Resistivity range


Machine size

4350(L)x1530(W)X1620(H) mm

Machine weight
