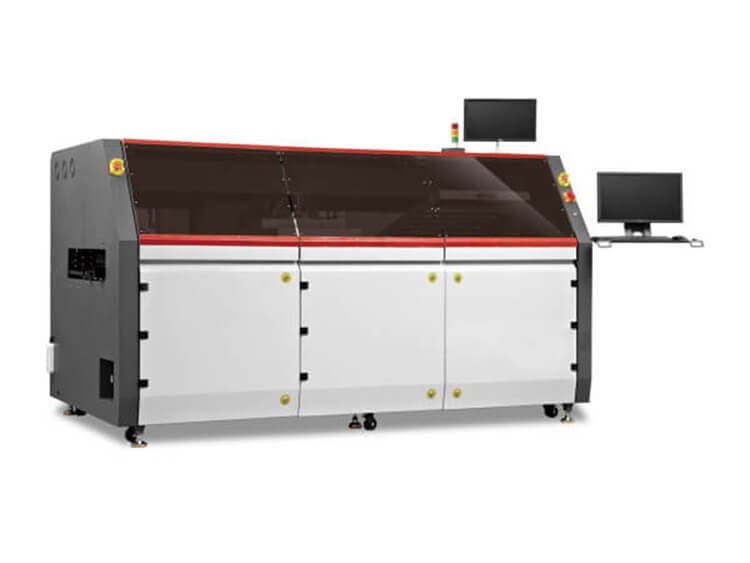

Inline Dual head Selective Soldering Machine SL450

max solder temperature 350℃
solder pot capacity 15 KG
dimension L1280mm X W1400mm X H1650mm
Net weight 380KG

Inline Dual head Selective Soldering Machine SL450


Inline Dual head Selective Soldering Machine SL450

(1) Integrated full-functional model, the whole motion platform integrated spray and welding, compact space.

(2) PCB plate fixed, spray and welding platform moving.

(3) High welding quality, greatly improve the pass rate of welding.

(4) Modular design of SMEMA online transportation, support customers for flexible line formation.

(5) Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality.



Solder Pot quantity

 2 Solder pot

Controlling system

PC & monitor

Live on monitor camera

motion control

PCB Motion table

xyz motion table

3 axis equipped with ball screw & linear guild rail

3 axis equipped with servo motor & driver

Fluxing system

Imported fluxing jetting valve

flux tank

flux pneumatic system

preheating system

IR heater at bottom

Soldering pot

15kg capacity solder pot, impeller, tunnel, servor motor

solder temperature over heat alarm system

solder temperature controlling system

n2 inline heating system

Standard equipped solder nozzleInner 4mm x 3pcs, 5mm,6mm )

Conveyor system

PCB side clamping system

Machine chassis

machine frame/cover & painting


JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email:
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
