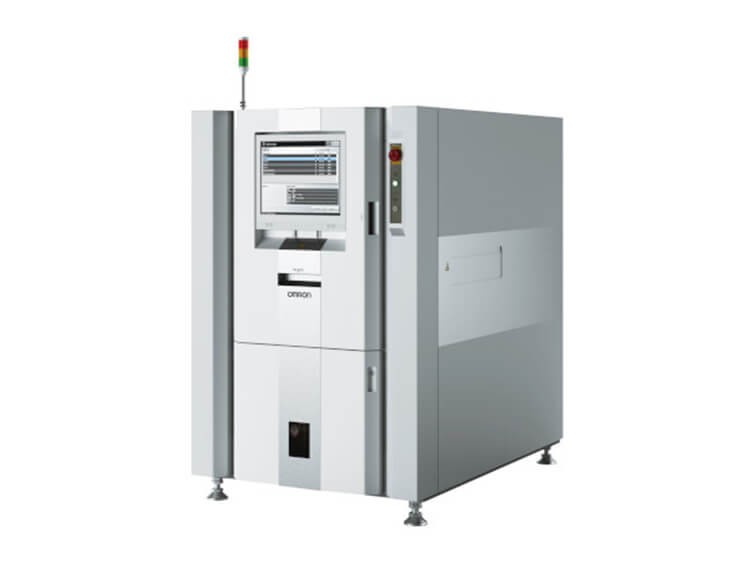

Omron 3D AOI VT-S730

FOV 30.00×30.72mm
max PCB:510(W)×460(D) mm
Weight Approx. 800kg
Dimensions 1100(W)×1470(D)×1500(H) mm

Omron 3D AOI VT-S730

Specifications:

Omron 3D AOI VT-S730

SIndustries Highest Capability

Full 3D-AOI System

Built Upon a History of Innovation and track record of High-Quality Solutions, the VT-S730 is the Industry’s fastest Real 3D-AOI machine using Omron’s unique 3D-Solder Joint Inspection (3D-SJI) technology for Best Inspection Capabilities.

VT-S730 series Post Reflow inspection machines have been widely adopted in production lines where the highest quality control is required, such as the Automotive Industry. VT-S730 Series uses a combination of Phase Shift and Omron’s unique color image processing technology called "color highlight ™ 3D shape reconstruction technology" providing the highest accuracy in Solder Joint Inspection called ‘SJI’.

Features

features vt-s730 aoi

Top View 4Mpixel/12Mpixel Camera with Telecentric Lens.

4x Oblique-Angle Inspection Cameras

Latest 3D Programmable DLP Projectors (25mm max Height Inspection).

Omron’s Unique Color-Highlight Illumination Technology.

Real 3D Image Technology for Component and High-Quality Solder Joint Inspection.

Real-time Interactive 3D data feedback to the Programmer.

View and edit samples of all parts on the board simultaneously (in real-time) without interrupting Production.

Process histograms are created automatically for all inspection tests and components

AI self-optimization tools can perform automated inspection logic and criteria changes.

Real defect images can be stored in a Central library and used to improve the tuning process.

Full 3D Data Processing and realization of Industrial 4.0 Smart Factory Solution.

Industrial 4.0 connectivity with The Hermes Standard for Full M2M Connectivity.

Omron Q-upNavi: Combine SPI, AOI and AXI Inspection Result Data for True Root-Cause Process Analysis for Process Improvement.

Omron Q-upAuto: Advanced Manufacturing Analysis Combining Q-upNavi ‘Inspection Result Data’, with ‘Manufacturing Process Data’ for High Level Process Improvement.

VT-730 is the latest 3D-AOI technology on the market, providing the Highest-Quality Solution for tomorrows production environments.

Model

S730

S730-H

Dimensions

1100(W)×1470(D)×1500(H) mm

Weight

Approx. 800kg

Power

supply

Voltage

200 - 240VAC (single phase), voltage fluctuation range ±10%

Normal

rated

power

2.8kVA

2.4kVA

Line height

900±20mm

Air supply pressure

0.3 - 0.6MPa

Operating temperature range

10 - 35°C

Operating humidity range

35 - 80%RH (Non-condensing)


signal

input block

Imaging system

4M pixel camera

12M pixel camera

Inspection

 principle

3D reconstruction through color highlight and phase shift technology


resolution

15μm

FOV

30.00×30.72mm

61.44×46.08mm

Supported PCB size

50(W)×50(D) - 510(W)×460(D) mm

Thickness

0.4 - 4mm

Clearance

Above: 40mm; Below: 40mm

Height measurement

range

25mm

Inspection item

Component height, lift, tilt, missing/wrong component, wrong polarity, flipped component, OCR inspection, 2D code, component offset (X/Y/rotation), fillet (height/length, end  joint width, wetting angle, side joint length), exposed land, foreign material, land error, lead  offset, lead posture, lead presence, solder ball, solder bridge
