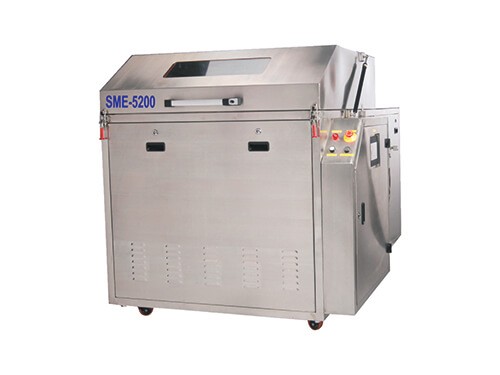

SMT Fixture Cleaning Machine SME-5200
SMT Fixture Cleaning Machine SME-5200
SME-5200 Fixture Cleaning Machine is used to clean grease, flux, dusts on the surface of all kinds of SMT fixtures，tray, reflow oven cooler and filter, wave-soldering oven claw, chains, and nets…etc.
SME-5200 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt SMT fixtures on to the cleaning basket, setting the cleaning parameters, the machine will automatically complete wash, rinse and dry process by just pushing start key. The fixtures after cleaning is very clean and dry, ready to use at any time.
1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.
2.1 meter diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time.
3.Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4.Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.
5.PLC program control, Touch-panel operation，cleaning parameters can be set and change conveniently.
6.Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7.Clean liquid and water heat and temperature keeping function.
8.Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9.Standard equipped solution and water auto fill in and discharge function.
10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.
Cleaning basket size
Φ1000mm x H 200mm. Special size option
Upper/lower/front side,720°all-around spray
3-level filter system
1mm /50um/20um filters
Clean tank capacity
Rinse tank capacity
Clean spray pressure
Clean detergent heat temp
Rinse water heat temp
Hot air heat temp
Clean pump power
Clean detergent power
Hot air heat power
Air blower power
3 P,AC 380V,50/60HZ,33KW
L1380 x W2100 x H 1400 (mm)
