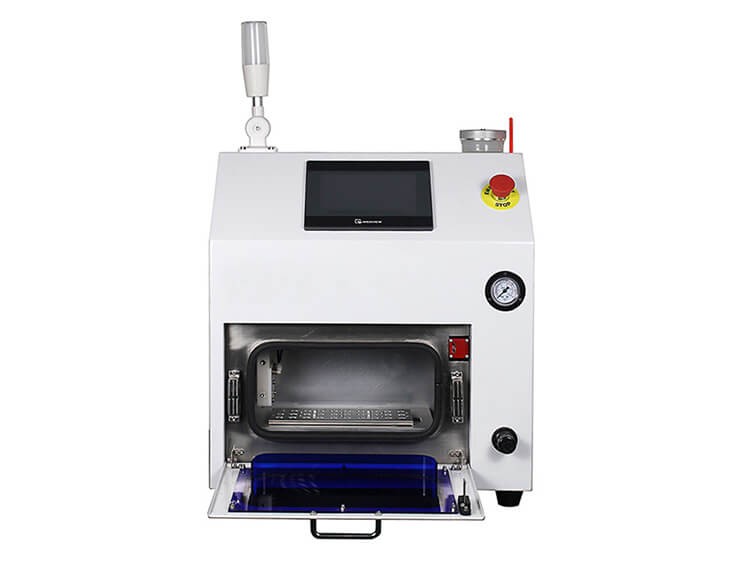

SMT NOZZLE Cleaner NC300

Size: (L*W*H) 500mm × 400mm× 550mm
Power supply 250W
Air source pressure 0.5 - 0.6MPa
Weight Approx. 40 KG

SMT NOZZLE Cleaner NC300


SMT NOZZLE Cleaner NC300

Can cleaning nozzle of JUKI, YAMAHA, SAMSUNG, FUJI, PANASONIC,SEIMENS, HITACHI pick and place machine nozzles.


Main technical parameters

Size: (L*W*H) 500mm × 400mm× 550mm

Power(three phase two wire ) 2P2W,220VAC ,50/60Hz, 20A

Power supply 250W

Air source pressure 0.5 - 0.6MPa (Normal operation time)

Weight Approx. 40 KG

Parameters for electrical control:

Total power 200W

Controlling mode Touch screen+PLC

Air source Pure compressed air

Jet pressure ≤ 0.4 MPa

Air wastage Under 280NL/min

Liquid type Industrial purified water

Liquid consumption 300cc/hour

Liquid storage capacity 800cc

Admission pipe/Drainpipe ¢8 / ¢6

Specification of nozzle tray Default30 nozzles

Specification of cleaning nozzle 0201 - 2512 (inch)

Noise 35-60 dB


JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email:
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
