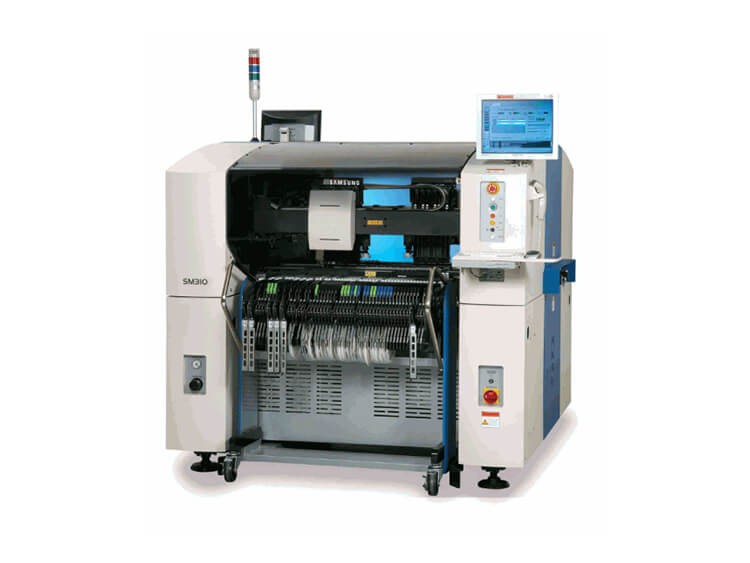

Samsung SM310 Pick and Place Machine

Speed 30000CPH
Equipment size L1650xW1680xH1530mm
Component range 0603 ~ 24mmCHIP

Samsung SM310 Pick and Place Machine


Samsung SM310 Pick and Place Machine

Speed 30000CPH, placement range: 0201 0402 0603 0805 ~ BGA

Rated power 3-phase 200/208/220/240/380 / 415V 50 / 60Hz 4KVA

Pressure / weight 0.49-0.78MPa 170L / min 1800kg

Equipment size L1650xW1680xH1530mm

Patch speed of 30,000 tablets / hour

Object Component Flight Vision 1005-22mm / Fixed Vision 0603-32mm

The station number up to 120 stations 8mm braid

Target substrate L50xW50-L460xW400mm

510L * 420W (single track)

510L * 220W (double track)

510L * 500W (single track, optional)

PCB thickness


Install the number of feeder 120ea / 112ea (docking cart)

Pressure and power consumption

Power Supply AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) RMS 3.4kva (MAX.8.9KVA)

Air pressure: 5kg / ㎡, 260 NI / MIN

Machine weight: 2.200KG

Machine Size: 1797 (L) * 1870 (D) * 1527 (H)


JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email:
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
