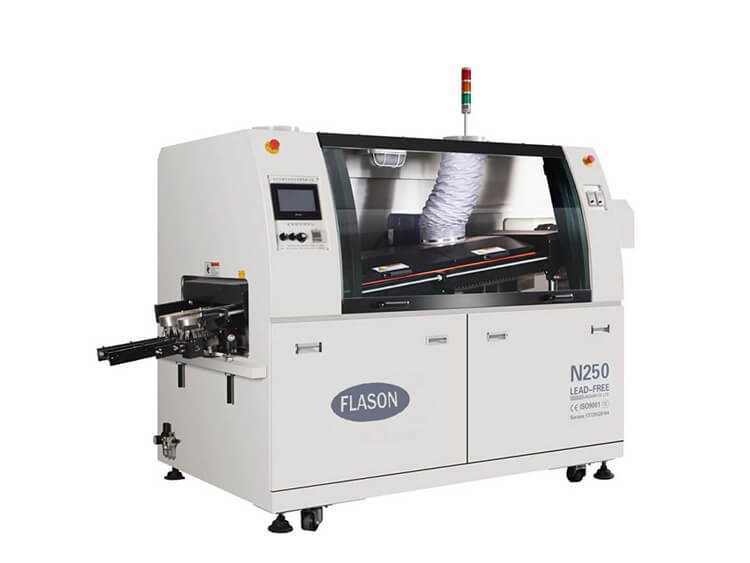

Wave Soldering Machine N250

Weight: 700KG
Dimensions: 2600(L)*1200(W)*1600(H)
spray fashion: SMC+ST 8 nozzle
Heating zone Length: 800mm

Wave Soldering Machine N250

Specifications:

Wave Soldering Machine N250

Automatic conveying power system and auto synchronous board feeding functions.

Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.

Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.

PLC is used to control the machine, to ensure the reliability and stability of the system.

Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.

Special alloy solder fingers, strengthened double v-groove.

Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.

Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.

Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

Timer startup feature for solder pot, solder melted within 90 minutes.

Automatic finger cleaner ensure the cleanliness of solder fingers.

Intelligent monitoring and alarm system ensure the stable performance and operators' afety.

Model No.

FLASON N250

Number of Pre-heaters

2

Pre-heater passage

800mm

Body size

1800(L)*1200(W)*1600(H)

Outside dimension

2600(L)*1200(W)*1600(H)

Weight

700KG

Total/steady consumption

11KW/4-6KW

Air supply

0.5MPa

Preheating style

Hot air

Preheater consumption

220V 5KW

Control  method

Press key +PLC Option: touch screen, PC

Range of temp. set-point

Room temperature---300ºC

Preheating time

About 10-15mins for setting 150ºC

Solder application

Lead-free / Sn-Pb

Solder pot capacity

220KG

Solder pot temperature

300ºC

Solder pot consumption

380V 6KW

Solder temp. control method

PID&SSR

Wave motor power

500W 220V

Solder melting

About 120mins for setting 250ºC

PCB  width

50-250mm

Conveyor  speed

0-1800mm/min

Conveyor  direction

L-R (R-L optional)

Conveyor Inclination

4—7 º

Flux pressure

3-5 bar

Flux capacity

3.2L
