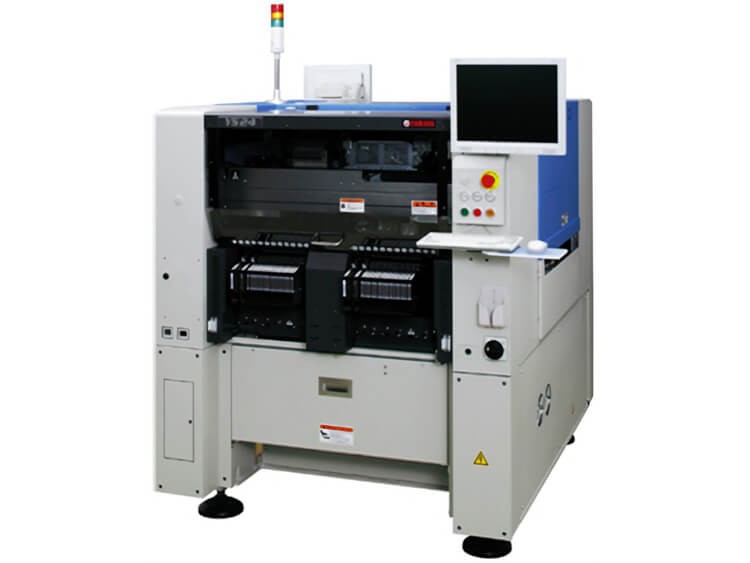

YAMAHA YS24 Pick and Place Machine

Mounting Capability: 72,000 CPH
Board size: L50xW50mm to L700xW460mm
Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less)
Weight: Approx. 1,700KG

YAMAHA YS24 Pick and Place Machine


YAMAHA YS24 Pick and Place Machine

Compact -Super-High -Speed Modular


72,000CPH (0.05sec/CHIP)

34kCPH/(Area-productivity, top class in the world)

L700 x W460mm (Super large PCB applicable)

YAMAHA Dual Lane System applicable

120 Max feeder capacity

0402 to 32 x 32mm(Components applicable)



Applicable PCB

L50xW50mm –to L700xW460mm

Mounting accuracy

+/-0.05mm ( + 3sigma), +/-0.03mm (3sigma)


72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)

Applicable components

0402 to 32x32mm MAX (Height 6.5mm or less)

Component Types

120 types (Max./8mm wide tape reel conversion)

Power supply

Three phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source


External dimension

L1,254x W1,687x H1,445mm (Excluding protrusions)


Approx. 1,700kg
