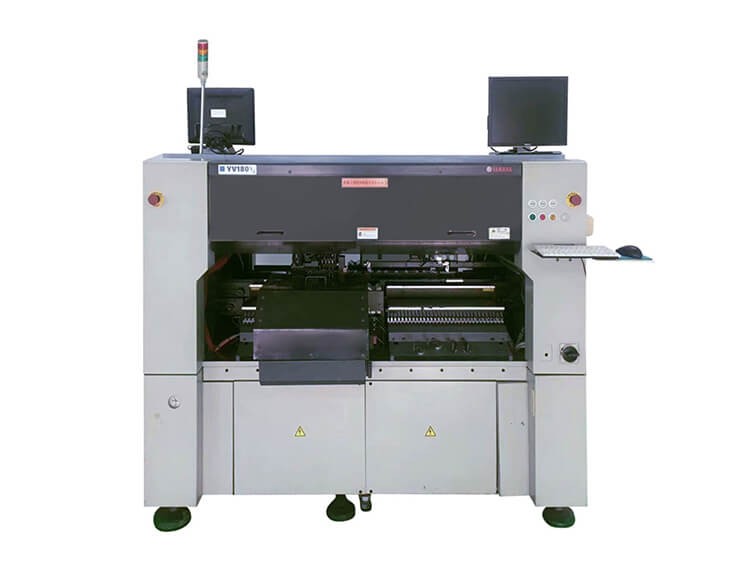

YAMAHA YV180 Pick and Place Machine

YAMAHA YV180 Chip Mounter
Patch speed 30,600CPH
weight: 2080KG

YAMAHA YV180 Pick and Place Machine


YAMAHA YV180 Pick and Place Machine

The main working parameters:

Power supply voltage: 380 (V)

Patch speed: 0.11 seconds / CHIP

0.16s / pcs, 0402/0603 / sop, QFP139029 ... Japan YAMAHA Y180X placement machine:

SMD PCB size: L330XW330MM_L50XW50MM

Chip components: 0603 (MM) -31MMX31MM

SMD components can be put 96 kinds (8MM)

Mounter size: L1960XW1630X1450

Mounter weight: 2080KG

Mounter YAMAHA YV180xg chip mounter

Substrate inch method L330 × W330mm (Max) / L50 × W50mm (Min)

L380 × W330mm (Max) / L50 × W50mm (Min)

Accuracy (μ + 3σ): ± 0.05mm / CHIP, ± 0.05mm / QFP Mounting Speed 0.095sec / CHIP 【Optimal Condition】

1608CHIP: 30,600CPH (0.118 seconds / CHIP conversion) [IPC9850 conditions: M distinction]

Mounting Area 0603 ~ □ 31mm Parts, SOP / SOJ, QFP, Connector, PLCC, CSP / BGA (※ 1)

※ □ 25mm ~ □ 31mm parts are available, the shaft can be equipped with spin-off possible.

FNC ヘ ッ ド: Before moving into the substrate above the allowable high さ 4mm or less, carrying parts may be high さ 6.5mm

Standard ヘ ッ ド: move into the substrate above the allowable high さ 6.5mm or less, carrying parts may be high さ 6.5mm

Dimensions inch method L1,960 × W1,630 × H2,000mm

The body mass is about 2,080kg


JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
