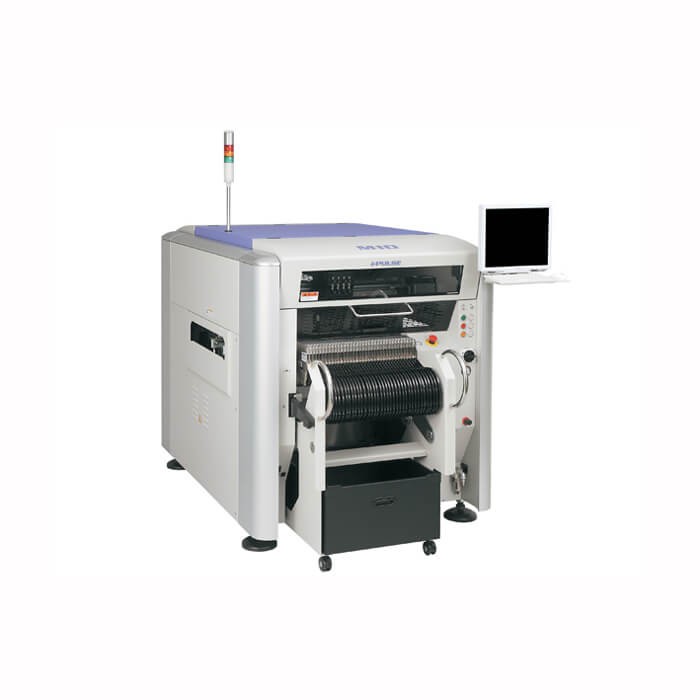

Yamaha M10 Hybrid Modular Surface Mounter

Speed: 30,000 CPH
Applicable PCB:L980 x W510mm

Yamaha M10 Hybrid Modular Surface Mounter


Yamaha M10 Hybrid Modular Surface Mounter

Handling large board as standard

Revolutionary and unique new features included as standard

New Multi-Conveyor System providing the highest large board handling capability

3D hybrid placement functions

Wide ranging component handling capability and high feeder capacity

Ultimate flexibility and fast & easy setup



Board size(with buffer unused)

Min. L50 x W30mm to Max. L980 x W510mm *1

Board size(with input or output buffer used)

Min. L50 x W30mm to Max. L420 x W510mm

Board size(with input and output buffers used)

Min. L50 x W30mm to Max. L330 x W510mm

Board thickness

0.4 - 4.8mm

Board flow direction

Left to right (Std)

Board transfer speed

Max 900mm/sec

Placement speed (4 heads + 1 theta) Opt. Cond.

0.15sec/CHIP (24,000CPH)

Placement speed (4 heads + 4 theta) Opt. Cond.

0.15sec/CHIP (24,000CPH)

Placement speed (6 heads + 2 theta) Opt. Cond.

0.12sec/CHIP (30,000CPH)*2

Placement speed (4 heads + 1 theta) IPC9850


Placement speed (4 heads + 4 theta) IPC9850


Placement speed (6 heads + 2 theta) IPC9850


Placement accuracy A (+3sigma)

CHIP +/-0.040mm

Placement accuracy B (+3sigma)

IC +/-0.025mm

Placement angle

+/-180 degrees

Z axis control

AC servo motor

Theta axis control

AC servo motor

Component height

Max 30mm*3 (Pre-placed components: max 25mm)

Applicable components

0402 to 120x90mm, BGA, CSP, connector, etc.

Component package

8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray

Drawback check

Vacuum check and vision check

Screen language

English, Chinese, Korean, Japanese

Board positioning

Board grip unit, front reference, auto conveyor width adjustment

Component types

Max 72 types (8mm tape), 36 lanes x 2

Transfer height

900 +/- 20mm

Machine dimensions, weight

L1250xD1750xH1420mm, Approx. 1,150kg


3-phase 200/208/220/240/380/400/416/440V +/-10%
(Transformer included), 50/60Hz

Max consumption, capacity

1.1kW, 5.5kVA

Air pressure, consumption

0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R.

*1 Max. 950mm for 6-head configuration

*2 Optional item

*3 Board thickness + Component height = Max 30mm

Specifications and appearance are subject to change without prior notice.
