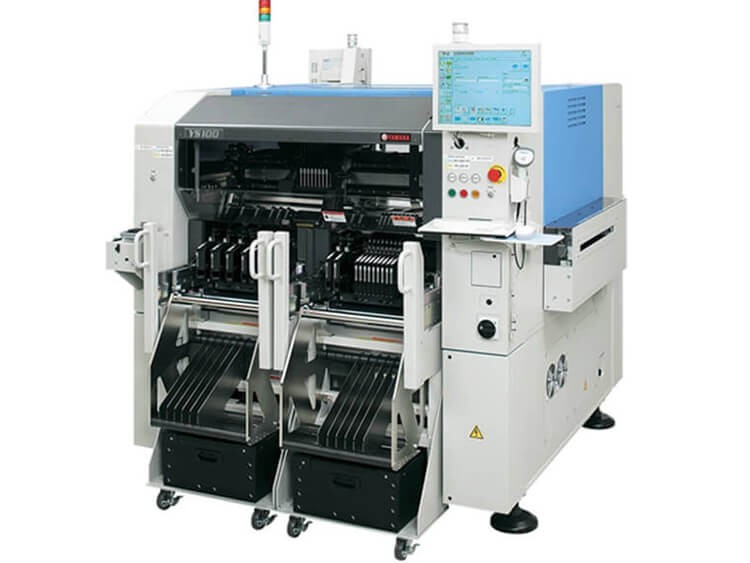

Yamaha YS100 Pick and Place Machine

Patch speed 25,000CPH
components range: 0402 - W45xL100mm
Capable 15mm height components

Yamaha YS100 Pick and Place Machine


Yamaha YS100 Pick and Place Machine

Main benefits

The standard YS100 comes with software and hardware features to improve product quality, increase production efficiency, shorten NPI and changeover times and reduces maintenance, including:

Intelligent electrical feeders

Z-Servo controlled placement heads for accurate stress-free component mounting

Automatic board width and thickness adjustment for fast changeover

Automatic nozzle cleaning station

Automatic temperature feedback to compensate for temperature variations

Fiducial recovery function that eliminates the need to remove and clean the PCB

Feeder indicators that facilitate easy setup and reduce feeder setup

Double board support system for reducing board transfer time

Tape cutters

High-speed mounting capacity handling

25,000CPH(0.14sec/CHIP Equivalent : optimum condition)



absolute accuracy in full time operation

Handles a wide range of components from 0402 chips to W45xL100mm or less components and with long connectors

Capable of handling 15mm height components

Applicable to large size PCB(L510mm x W460mm)

Built-in tape cutter available as an option

Conformity with both Machinery directive and EMC directive
