JT SMT Reflow Oven JTR series
JT SMT Reflow Oven JTR series

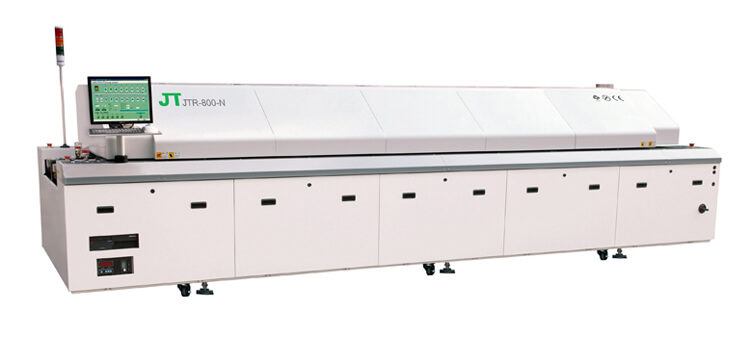

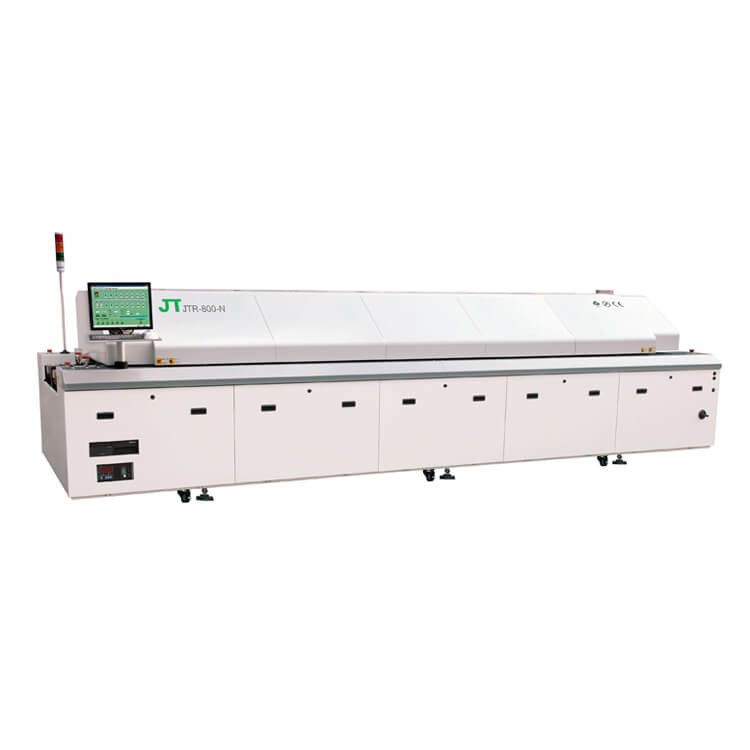

JT Reflow Oven JTR series JTR-600/JTR-600-N, JTR-800/JTR-800-N, JTR-1000/JTR-1000-N, JTR-1200/JTR-1200-N
Longer heating area makes higher production efficiency and throughput.
15% improvement of heat transfer efficient resolved more complicated and larger PCB lead-free technology.
Strengthened main sweep keep rail no transverse deformation, no board stuck and dropped.
Chamber designed for fully protecting and closing to keep no leaving of N2, the lowest content of O2 can be 150ppm.
Low consumption of N2, 20-22 m³/H of N2 reflow in O2 content is 300-800PPM condition.
4190 x1430 x1530
5520 x1430 x1530
6300 x 1430 x 1530
7050 x 1430 x 1530
2400KG / 2500KG
2700KG / 2800KG
3000KG / 3100KG
Number Of Heating Zones
Up /Bottom 6
Up /Bottom 8
Up /Bottom 10
Up /Bottom 12
Length Of Heating Zones
Number Of Cooling Zones
1(Cool Air Conversion)
Up 3 / Bottom 3 (Cool Air Conversion)
10 M3 / min x 2 ( Exhausts)
Electric Supply Required
3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz )
Electric Power Required
48KW / 51KW
64KW / 67KW
80KW / 83KW
93KW / 97KW
Power For Warm Up
24KW / 26KW
30KW / 32KW
36KW / 38KW
40KW / 42KW
6.5KW / 7KW
9KW / 10KW
10KW / 11KW
11KW / 12KW
Approx. 20 minu
