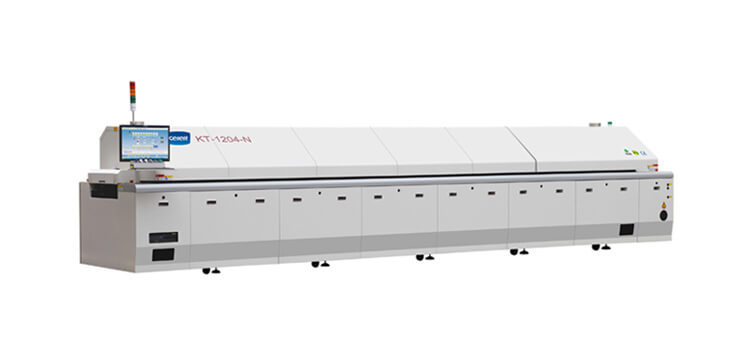

JT SMT Reflow Oven KT series

Max PCB width: 450mm
8 heating zones
Weight: 3150KG/3300KG
Outside Dimension: 5900X1725X1630mm

JT SMT Reflow Oven KT series

Specifications:


JT SMT Reflow Oven KT series

JT Reflow Oven KT series:KTD-0804/KTD-0804-N, KTD-1004/KTD-1004-N, KTD-1204/KTD-1204-N

High speed, high efficiency, conveyor speed can run 160cm/min. in normal soldering process.

Prevent deformation design as well as two-phase rail composition.

New two level flux reclaim system with multi-zones collecting.

Whole tunnel nitrogen protection and oxygen concentration monitoring, the 02 ppm can be checked automatically or manually.

New enhanced 4 cooling zones which are able to cool down the PCBA to 50℃ even in large volume lead free process.

Model

KTD-0804/KTD-0804-N

KTD-1004/KTD-1004-N

KTD-1204/KTD-1204-N

GENERAL


Outside Dimension

5900X1725X1630mm

6622X1725X1630mm

7313X1725X1630mm

Standard Color

Computer Grey

Computer Grey

Computer Grey

Weight

Approx.3150KG/3300KG

Approx.3650KG/3800KG

Approx.4150KG/4300KG

Electric Supply Required

3 Phase,380V 50/60HZ(Optional:3 Phase,220V 50/60HZ)

Electric Power

71KW/74KW

89KW/92KW

101KW/105KW

Power For Warm Up

33KW/35KW

35KW/37KW

40KW/42KW

Power Consumption

9KW/9.5KW

10KW/11KW

11.5KW/13KW

Components Clearance

PCB Top:30mm Bottom:25mm

Model

KTS-0804/KTS-0804-N

KTS-1004/KTS-1004-N

KTS-1204/KTS-1204-N

GENERAL


Outside Dimension

5900X1495X1630mm

6622X1495X1630mm

7313X1495X1630mm

Standard Color

Computer Grey

Computer Grey

Computer Grey

Weight

Approx.2800KG/2950KG

Approx.3250KG/3400KG

Approx.3700KG/3850KG

Electric Supply Required

3 Phase,380V 50/60HZ(Optional:3 Phase,220V 50/60HZ)

Electrical Power

65KW/69KW

81KW/85KW

93KW/97KW

Power For Warm Up

30KW/32KW

32KW/34KW

37KW/39KW

Power Consumption

7.5KW/8.5KW

8.5KW/9.5KW

10.5KW/11.5KW

Components Clearance

PCB Top:30mm Bottom:25mm

Model

KTS-0804L/KTS-0804L-N

KTS-1004L/KTS-1004L-N

KTS-1204L/KTS-1204L-N

GENERAL


Outside Dimension

5900X1725X1630mm

6622X1725X1630mm

7313X1725X1630mm

Standard Color

Computer Grey

Computer Grey

Computer Grey

Weight

Approx.3100KG/3250KG

Approx.3600KG/3750KG

Approx.4100KG/4250KG

Electric Supply Required

3 Phase,380V Phase,220V 50/60H  (Optional:3 50/60HZ)

Electric Power

71KW/74KW

89KW/92KW

101KW/105KW

Power For Warm Up

32KW/34KW

34KW/36KW

39KW/41KW

Power Consumption

8KW/9KW

9.5KW/10KW

11KW/12KW

Components Clearance

PCB Top:30mm Bottom:25mm
