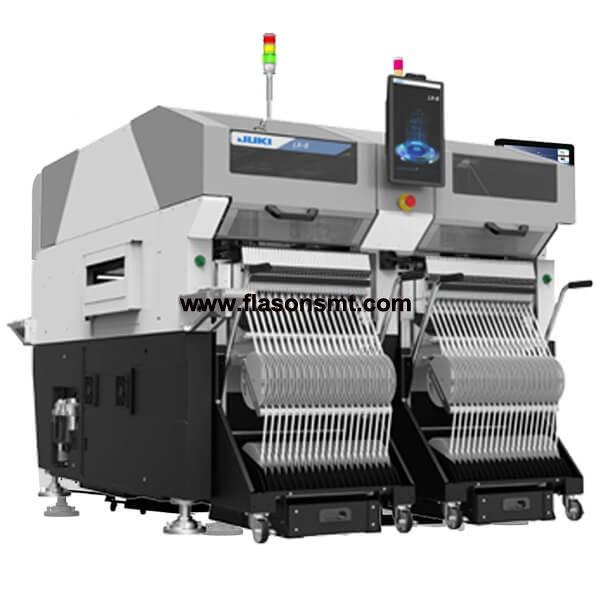

JUKI LX-8 Pick and Place Machine

JUKI LX-8 Pick and Place Machine

Specifications:

JUKI LX-8 Pick and Place Machine

2 Head High-speed placement and area production are achieved

It boasts the highest 105,000CPH in its class*, and is equipped with ultra-high speed, space-saving features, while boasting high area productivity and achieving highly efficient production.

The Planet P20S head supports mounting of 0201 very small parts.

In addition, even large components and other highly versatile design heads can be equipped with ultra-high speed 94,000CPH that are among the highest in their class.

Features of the LX-8 Takumi head specifications

Realization of highly efficient production through high area productivity

New User Interface pursuing ease of use

The number of feeder slots is 160 or more*, which is the largest in its class. Significantly shortens changeover time.

LX-8 allows front-side banks to operate without loss of productivity.

Independent head configuration with minimized tact loss

Components from 0.3mm×0.15mm up to 65 mm square, 10mm×90 mm, or50 mm x 75 mm and up to 25mm tall.

New high accuracy camera for inspection and centering

Reduction of VCS image-recognition times (compare with our equipment)

Integrates seamlessly with the production environment

Model		JUKI LX-8 SMT Chip Mounter
		P20S*¹×P20S*¹	P20S*¹xTakumi	TakumixTakumi
Board size	Minimum	50×50mm
	Single clamping	410×400mm
	Double clamping*¹	810×400mm*²
Component height		3mm	25mm
Component size	Minimum	0201*¹		0201*¹
	Maximum	5 ㎜	65 ㎜ /10 ㎜ ×90 ㎜ /50 ㎜ ×75 ㎜
Placement speed (optimum)		105,000CPH	99,500CPH	94,000CPH
Placement accuracy		±40μm（25μm*³）(Cpk ≧1)	±35μm (Cpk ≧1)*⁴
Feeder capacity	Tape	Max. 136	Max. 148	Max. 160
	Tray*⁵	-	Max. 30	Max. 60
Power		3-phase AC200V (standard) AC200V ～ AC415V (when optional transformer is selected)
Apparent power		2.49kVA
Operating air pressure		0.5±0.05MPa
Air consumption (standard)		50L/min(ANR)
Machine dimensions (WxDxH)⁶		1,600 ㎜ ×1,924 ㎜ ×1,440 ㎜
Mass (approximately)		2,400kg or less

*1 Please contact FLASON for detail
*2 Factory default
*3 Image recognition, high-precision mode
*4 For laser recognition
*5 For TR8SR
*6 D dimension does not include the front operation monitor. H dimension does not include signal tower.
