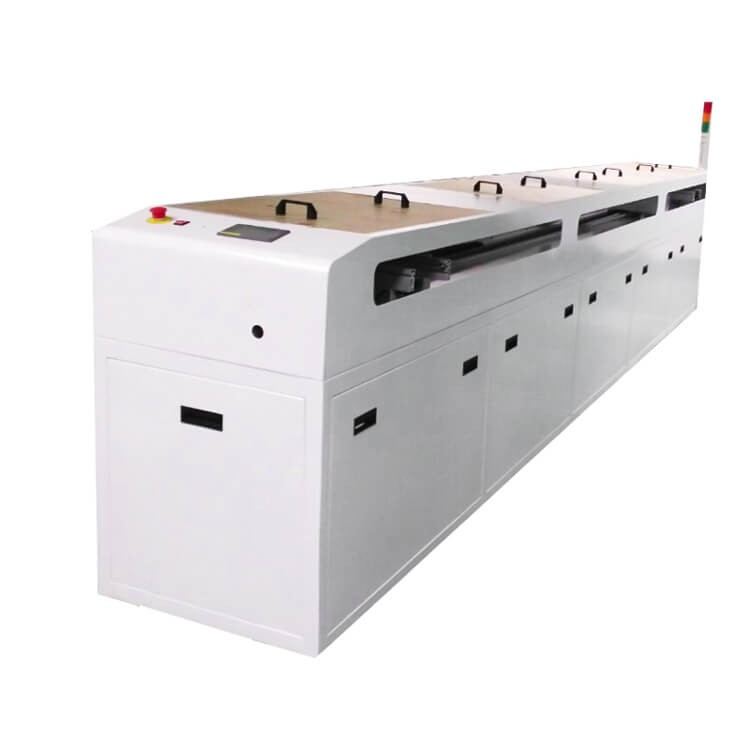

SMT PCB Transfer Shuttle Conveyor TC-330

Control System: PLC
Indexing Pitch: 10.20.30.40mm or Specify
SMT PCB Translation Shuttle Conveyor
PCB Size: 50*50-330*250mm

SMT PCB Transfer Shuttle Conveyor TC-330

Specifications:

SMT PCB Transfer Shuttle Conveyor TC-330

1.PLC+LED touch screen control, easy to operate.

2.Full closed design ensures safety level of operation.

3.The cover can be opened to facilitate machine maintenance.

4.Smooth and precise width adjustment (leadscrew).

5.Smooth and accurate movement (stepping motor).

6.Minimize the transmission gap between conveyors.

7.With SMEMA signal.

Product Name

SMT Transfer PCB Shuttle Conveyor

Model

OB-SC618

Dimensions

500*W*1050mm

PCB size

50*50-330*250mm

PCB thickness

Min.0.6mm

Belt type

Round belt or flat belt (optional)

Power/power consumption

AC 1P 110V/220V 50/60HZ

Conveyor height

900±20mm

Conveyor direction

L-R or R-L (optional)

Weight

Approx.140Kgs

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
