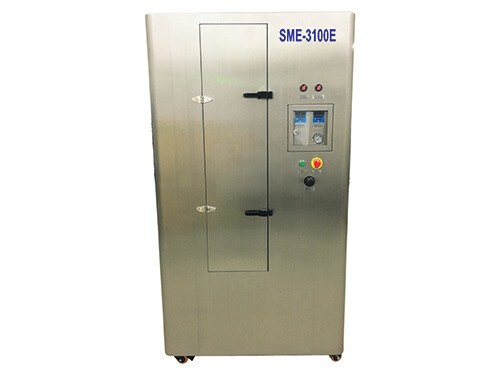

SMT Screen Cleaning Machine SME-3100E

SMT Screen Cleaning Machine SME-3100E

Specifications:

SMT Screen Cleaning Machine SME-3100E

SME-3100(SME-3120) Pneumatic Silk Screen Cleaning machine is used to clean printed ink and silver paste on printing screen. The machine is totally driven by compressed air. Rotate spray clean + spray resin + air dry functions can clean any silk screen and stencil. It is mainly used in the following industries:

TP/PCB/FPC/Member switch: Ink, Silver paste, Isolated/Etching glue Screen and Stencil.

Clothing/Sings/Plastic/Hardware Silk Printing Screen.

Machine Features:

1.Totally driven by compressed air, no electric power, no explosion, fire caused by electric sparks.

2.Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.

3.One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure

4.Clean and rinse system can use different solvent to meet more strict clean requirement.

5.Multi-level precise filtration system, Solvent repeated use in the machine.

6.Standard equipped with auto solvent fill in and drain out function.

7.Exhaust air vent connected to the factory air pipe, no abnormal flavor in clean workshop caused by solvent, protect working environment, meet the requirement of environment protection.

8.Cut off  10% printing defect, significantly improve printing quality

9.Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.

10.Reduce screen damage rate to less than 1%, extend lifespan of Screen.

11.Solvent repeated use, cost down, greatly reduce solvent emission.

Item	SME-3100 Spec	SME-3120 Spec
Max Screen Size	1000 x 1000 x 40mm( Lx W x H)	1200 x 1200 x 40mm( Lx W x H)
Solvent tank	50L	50L
Clean time	3~5min	3~5min
Resin time	1~2min	1~2min
Dry time	3~5min	3~5min
Air consumption	800~1000L/min	800~1000L/min
Air supply	0.5~0.7Mpa	0.5~0.7Mpa
Air vent size	Φ124 × H30 (mm)	Φ124 × H30 (mm)
Filter system	3-Level filtration system	3-Level filtration system
Clean mode	360°Rotation Clean +Rinse + Dry	360°Rotation Clean +Rinse + Dry
Machine size	L1380 x W1050 x H 1950(mm)	L1550 x W1100 x H 2050(mm)
Machine weight	400KG	460KG
