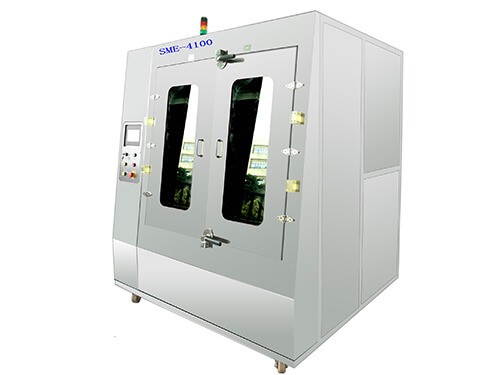

SMT Screen Developing and Stripping Machine SME-4100

Max Screen Size L1000 x W1000 x H40
Solvent tank Min 120L
Clean time 1~4min​
Machine weight About 500kg

SMT Screen Developing and Stripping Machine SME-4100


SMT Screen Developing and Stripping Machine SME-4100

SME-4100 Auto Screen Developing and Striping Machine is used to clean screen after exposure in screen producing process. 2 water spray rods clean the front and rear side of the screen to make the printing graph clear.

SME-4100 also used as Screen Striping Machine to clean photographic coating and ghost image on screen to make it a plain screen and ready to reuse again.

1.High quality electrical pump. High pressure water spray and recycle filtering function.

2.Totally SUS 304  structure, Strong Acid and Alkali corrosion resistance,  10 years lifespan.

3.One-key operation, developing/Stripping and dry process complete automatically according to pre-setting procedure。

4.Standard equipped water level control mechanism, automatically add water when water is not enough..

5.Standard equipped water less alarm and protection system, shut off the machine automatically to protect the pump.

6.Completely closed spray developing process, makes the ground of the workshop clean and day.

7.Super well-known electrical and pneumatic parts, perfect design, strictly produce process to ensure stability and high quality of the machine.

8.It also can be used as auto striping machine after adjusting the water jet pressure and time.



Max Screen Size

L1000 x W1000 x H40(mm)

Solvent tank

Min 120L

Clean time


Dry time


Air consumption


Air supply


Air vent size

Φ125 × H30 (mm)

Filter system

2mm water inlet filter

Developing /Striping

Spray clean + air dry

Power supply


Machine size

L2000 x W1500 x H 2150(mm)

Machine weight

About 500kg
