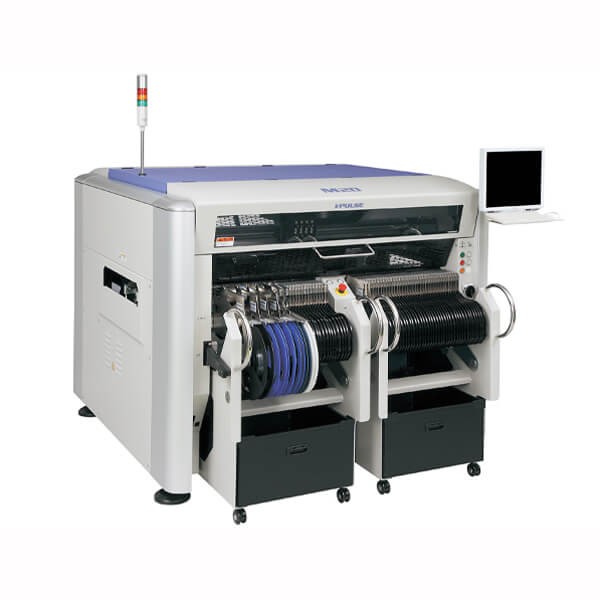

Applicable PCB: L1,480 x W510mm
andling max. 1,480mm ultra long board as standard
· Revolutionary and unique new features included as standard
· New Multi-Conveyor System providing the highest large board handling capability
· 3D hybrid placement functions
· Wide ranging component handling capability and high feeder capacity
· Ultimate flexibility and fast & easy setup
Board size(with buffer unused)
Min. L50 x W30mm to Max. L1,480 x W510mm*1
Board size(with input and output buffers used)
Min. L50 x W30mm to Max. L540 x W510mm
0.4 - 4.8mm
Board flow direction
Left to right (Std)
Board transfer speed
Placement speed (4 heads + 1 theta) Opt. Cond.
Placement speed (4 heads + 4 theta) Opt. Cond.
Placement speed (6 heads + 2 theta) Opt. Cond.
Placement speed (4 heads + 1 theta) IPC9850
Placement speed (4 heads + 4 theta) IPC9850
Placement speed (6 heads + 2 theta) IPC9850
Placement accuracy A (+3sigma)
Placement accuracy B (+3sigma)
Z axis control
AC servo motor
Theta axis control
AC servo motor
Max 30mm*3 (Pre-placed components: max 25mm)
0402 to 120x90mm, BGA, CSP, connector, etc.
8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Vacuum check and vision check
English, Chinese, Korean, Japanese
Board grip unit, front reference, auto conveyor width adjustment
Max 144 types (8mm tape), 36 lanes x 4
900 +/- 20mm
Machine dimensions, weight
L1750xD1750xH1420mm, Approx. 1450kg
3-phase 200/208/220/240/380/400/416/440V +/-10%
Max consumption, capacity
Air pressure, consumption
0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R.
*1 Max. 1,450mm for 6-head configuration
*2 Optional item
*3 Board thickness + Component height = Max 30mm
Specifications and appearance are subject to change without prior notice.
