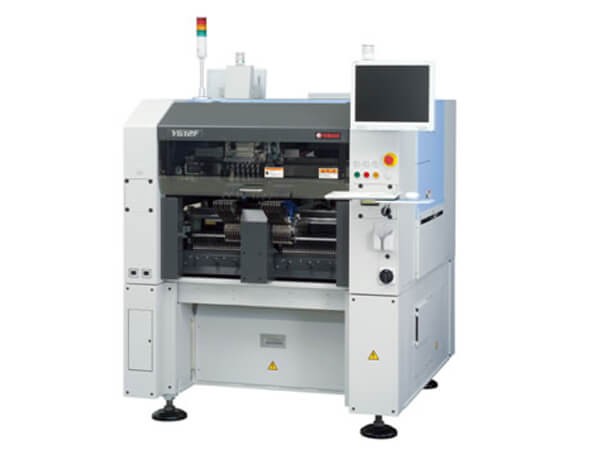

Yamaha YG12F Pick and Place Machine

PCB: L510×W460mm
Speed: 20,000CPH
Dimensions: L1,254×W1,440×H1,445mm

Yamaha YG12F Pick and Place Machine


Yamaha YG12F Pick and Place Machine

Based on Yamaha's YS12F model designed as a compact, high-speed, space-efficient low priced surface mounter, the new YG12F has been developed as a model to function with a conventional pneumatic tape feeder (*1). It achieves a high level of component applicability with the capacity to mount large electronic components of 0402 - □45mm, compatibility with the 15-pallet automatic tray stacker, "ATS15," a recognition function for ball type electrode components (*2) and the capacity to mount components with a height of 15mm or less. It also achieves a high-level balance of high-speed mounting with a throughput of 20,000CPH (*3), space economy and low price to provide excellent cost performance.

Product Features

(1)Combines good component mounting capability with a throughput of 20,000 CPH (Yamaha optimized conditions) and outstanding component applicability with the capacity to mount electric/electronic components of 0402 - □45mm size and with a height of 15mm.

(2)Recognition and mounting of ball type electrode components including BGA/CSP and special connectors by means of side light (option) and rear-side multi-camera (option).

(3)Choice of optional manual tray or automatic tray stacker, "ATS15."

(4)Improved space economy and operational efficiency with the capacity to process large printed circuit boards of up to L510mm×W460mm despite the compact platform size (L1,254×W1,440mm).

(5)Multiple Accuracy Compensation System (MACS) adopted: A system to compensate for factors causing changes in accuracy in both mixed and multilevel ways in order to guarantee a consistent mounting accuracy range of ±0.05mm.

(6)Maintains the basic functions and performance of the base model YS12F, including outstanding space efficiency, high-speed mounting and optical image recognition device, etc. Furthermore, many auxiliary equipment options are available.

Model Name


Applicable PCB

L50×W50mm - L510×W460mm

Mounting Accuracy

Absolute accuracy (μ + 3σ), ±0.05mm/chip

Mounting Capability

20,000CPH (Optimum conditions established by Yamaha Motor)

Component supply

Tape reel, tray package

No. of component types

Tape reel: 48 types (standard), 107 types (option)
(Max. / 8mm tape reel conversion)
Tray feeding: 15 types Max. / JEDEC tray conversion)

Applicable component size

0402 - 45mm max. (32 - 45mm conditional)
including ball type electrode components

Mounting component height

15mm or less

Power Supply

3-phase AC 200/208/220/240/380/400/416 V ±10%

Air Supply Source


External Dimensions

L1,254×W1,440×H1,445mm (unit only, excluding projections)
L1,254×W1,755×H1,445mm (with ATS15, excluding projections)


Approx. 1,250kg (main unit only)
Approx. 1,370kg (with ATS15)
