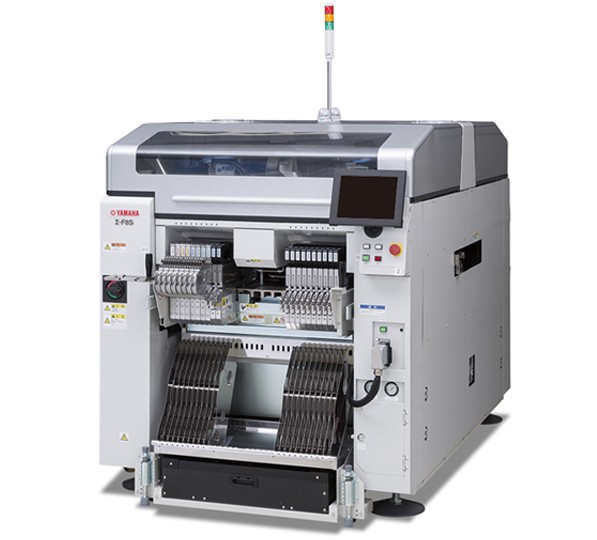

Yamaha sigma-F8S surface Mounter

Speed: 150,000 CPH
Applicable PCB: L 330 x W 250 mm - L 50 x W 50 mm
Dimension: L 1,280 x W 2,240 x H 1,450 mm

Yamaha sigma-F8S surface Mounter


Yamaha sigma-F8S surface Mounter

1) Improved productivity and accuracy due to revised XY axis design

Introduction of leading-edge control technology together with the adoption of an off-set type linear motor through a logic-based design revision of the XY drive axes. The supporting beam of the head has been made more lightweight and with reduced vibration. Because of this, the effective tact delivers a 5% productivity improvement on average over existing models. At the same time, mounting accuracy of ± 25um (3sigma), which corresponds to handling the extremely small-sized 0201 chip components, has also been achieved.

2) Compatibility with Current sigma Series Model

Compatibility of the main options with the current model ?-F8 has been maintained, including with the head, nozzle, nozzle stocker, and tape feeder. This allows for users of the current ? series to continue to use their specialized equipment as they implement this new equipment hassle free.



Applicable PCB

Single lane

L 330 x W 250 mm  -  L 50 x W 50 mm
(Option: L 381x W 510 mm  -  L 50 x W 50 mm)


L 330 x W 250 mm  -  L 50 x W 50 mm

Applicable Components

High-speed head: 0201 - 4.3 x 3.4 mm
(Height 2.0 mm or less)

High-speed Multi-Purpose head 03015- 33 mm
(Height 12.7 mm or less)

Mounting capability
(The Company's optimum

High-speed head x 4 Spec:
150,000 CPH (Dual-lane)
136,000 CPH (Single lane)

Mounting accuracy
*In the Company's optimum
(standard material used for

High-speed Head:
0201/03015: ±25um (3sigma) (140,000CPH)
0402/0603: ±36um ( 3sigma) (150,000CPH)

Number of component types

Max 80 types (8 mm width tape conversion)

Power supply

Three-phase AC 200±10%  50/60 Hz

Air supply

0.45 MPa or more, clean and dry state

External dimensions
(not including projected parts)

L 1,280 x W 2,240 x H 1,450 mm


Approx. 1,940 kg (Not including cart)
