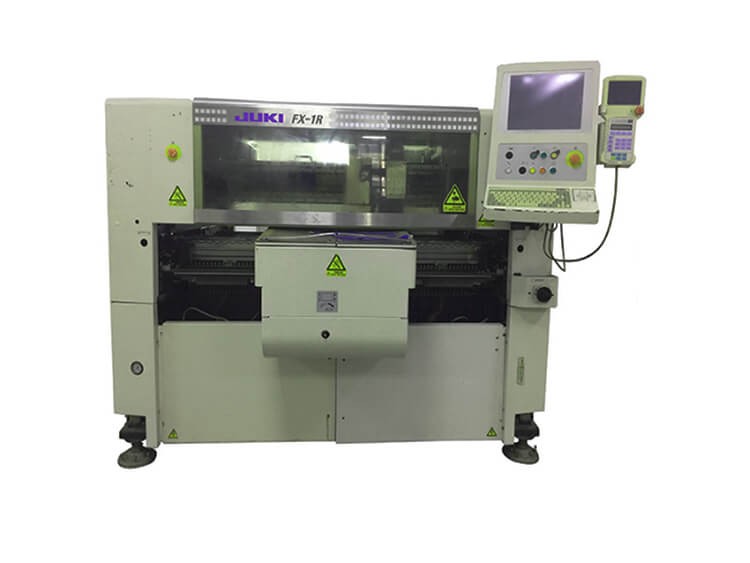

JUKI FX-1R Pick and Place Machine

JUKI FX-1R Pick and Place Machine
Chip piece: 25000cph
Machine size: 1,880×1,731×1,490mm
Weight: about 2000kg

JUKI FX-1R Pick and Place Machine


JUKI FX-1R Pick and Place Machine

JUKI FX-1R Specification and price|JUKI FX-1R Machine


It depends on the working status of juki fx-1r pick and place machine.

The High-speed Modular Mounter FX-1R is a traditional modular chip

shooter driven at extreme speeds.  Refinements in the drive system

deliver real world improvements in actual throughput.

For the 0402-20mm chip or special-shaped components, small-scale high-speed placement.

JUKI fx-1r Mounter Features:

JUKI high-speed placement machine fx-1r adopts advanced linear motor and unique

hi-drive mechanism for high-speed placement.

Inherited the traditional concept of modular placement machine,

and realized a high-speed placement of the placement machine.

Reasonably adjust all parts and improve the actual mounting speed.

Board size: 410*360mm

Component height: 6mm

33,000CPH:chip (optimal) / 25,000CPH: chip (IPC 9850)

Two independent multi-nozzle laser heads (8 total nozzles)

from 0603 (0201) to 20mm square components or 26.5×11mm

0402 (01005) option factory installed.

Component Size: Laser Recognition 0603 (Inch 0201) Chip ~20mm Square Element or 26.5*11mm

Component placement speed:chip:33000cph (best condition)

Chip piece: 25000cph (ipc9850)

Component placement accuracy: ±0.05mm

Component placement type: up to 80 types

Power supply: three-phase ac200~415v

Rated power: 3kva

Air pressure: 0.5±0.05mpa

Machine size: 1,880×1,731×1,490mm

Weight: about 2000kg
