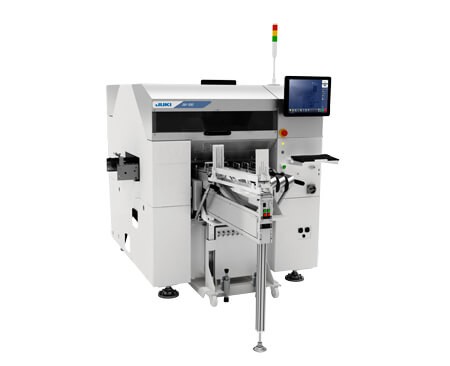

JUKI JM-100 Hybrid Insertion Machine

JUKI JM-100 Hybrid Insertion Machine

Specifications:

JUKI JM-100 Hybrid Insertion Machine

Advancing versatility, quality and speed

Best in class speed.

Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.

New "Takumi head" with multiple recognition heights

Component Feeding

Line control using JaNets software

Multi Task Platform JM-100
		L size board
Board size		410×360mm
PCB Weight		max.4kg
Component height		max30mm
Component Size	Laser recognition	0603～50mm
	Vision recognition	3mm～50mm
Insertion Speed （Insertion components）	Vacuum*2	0.6sec/part*1*3*4
	grip	0.8sec/part*2*3*4
Placement Speed (SMT）	Chip ( Optimum）	16,000CPH*3*4
Placement Accuracy (SMT）	Laser recognition	±0.05mm（3σ）
	Vision recognition*1	±0.04mm

* 1 Specification conditions
(Applicable part: Aluminum electrolytic capacitor (φ 8 mm), Feeder: two MRF-S, Placement conditions: Simultaneous pick, sequential insertions using 2 nozzles)
* 2 Specification conditions
(Applicable part: Connector (4 pin), Insertion conditions: 2 sequential picks and insertions using 2 nozzles)
* 3 Board transfer and mark recognition time not included.
* 4 When the part height is 16 mm.

Keywords:

JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments ,  JUKI products,  JUKI Pick and Place Machine Machine,  JUKI SMT Stencil Printer,  JUKI Assembly Line,  JUKI SMT Reflow Oven;  JUKI SMT Inspection Machine;  JUKI SMT Spare Parts;  SMT Equipment;  JUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
