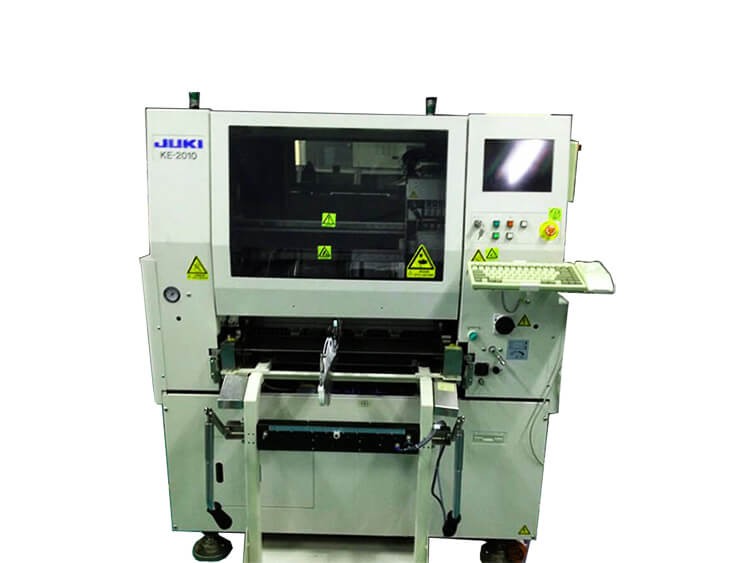

JUKI KE-2010 Pick and Place Machine

Applicable Components: 0402 ~ 20mm
Board size:330 × 250mm
Component types: 80 types
placement capacity:11000CPH

JUKI KE-2010 Pick and Place Machine

Specifications:

JUKI KE-2010 Pick and Place Machine

Chip theoretical speed of 11000CPH

Mounting range 0402 ~ 20mmJUKI KE-2010 Placement Machine parameters

Chip theoretical speed of 11000CPH

Mounting range 0402 ~ 20mm square components

Placement accuracy plus or minus 0.03mm

PCB size 50 × 30 ~ 330 × 250mm

Equipment size 1300 × 1471 × 1550MM

Rated power 3KVA

Equipment weight 1400kg

Used JUKI2010 placement machine is a mid-speed placement machine, generally 2000-2008 equipment,

laser patch head × 1 (4 nozzle) & high-resolution visual placement

head × 1 (1 nozzle) .JUKI2010 modified can be mounted 1.2 m LED light board.

Substrate size: 50 × 30 ~ 330 × 250mm

Substrate thickness: 0.4 ~ 4mm

Component Size: 0402 ~ 20mm square components or 26.5 × 11mm IC / BGA / CSP

Mounting speed: 11000CPH

Mounting accuracy: 0.05MM / 0.03MM (image recognition)

Component types: 80 types (up to 100 types using MTC)

Component Packaging: Tape (8mm, 12mm, 16mm, 24mm,

32mm, 44mm, 56mm, 72mm) Rod / Bulk / Tray

Machine size: 1300 × 1471 × 1550MM

Weight: 1400KG

Power: Three-phase 220V ~ 380V Three-phase 220V ~ 380V Frequency 50 / 60Hz 50 / 60Hz

Power: 3KVA 3KVA

Air pressure: 0.5 ± 0.05 MPa 0.5 ± 0.05 MPa

Air consumption: 230L / min square components

Placement accuracy plus or minus 0.03mm

PCB size 50 × 30 ~ 330 × 250mm

Equipment size 1300 × 1471 × 1550MM

Rated power 3KVA

Equipment weight 1400kg

Used JUKI2010 placement machine is a mid-speed placement machine,

generally 2000-2008 equipment, laser patch head × 1 (4 nozzle) & high-resolution visual

placement head × 1 (1 nozzle) .JUKI2010 modified can be mounted 1.2 m LED light board.

Substrate size: 50 × 30 ~ 330 × 250mm

Substrate thickness: 0.4 ~ 4mm

Component Size: 0402 ~ 20mm square components or 26.5 × 11mm IC / BGA / CSP

Mounting speed: 11000CPH

Mounting accuracy: 0.05MM / 0.03MM (image recognition)

Component types: 80 types (up to 100 types using MTC)

Component Packaging:

Tape (8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm) Rod / Bulk / Tray

Machine size: 1300 × 1471 × 1550MM

Weight: 1400KG

Power: Three-phase 220V ~ 380V Three-phase 220V ~ 380V Frequency 50 / 60Hz 50 / 60Hz

Power: 3KVA 3KVA

Air pressure: 0.5 ± 0.05 MPa 0.5 ± 0.05 MPa

Air consumption: 230L / min

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
